Ocean Railway Bridge, Stonehouse

This is eastern extent of the 'Cotswold Canal Connected' or Phase 1b restoration section.

The original railway bridge was first in use when the broad-gauge railway between Bristol Temple Meads and Gloucester opened in 1844. The bridge was a steel 'plate-girder' construction with a span of about 9.1m (30ft) and was supported on brick abutments.

In 1968 the bridge was removed and replaced with a section of embankment.  This encompassed a small culvert for canal water and a pedestrian foot tunnel.

The bridge was removed because British Rail (forerunner to Network Rail) decided it would be expensive to repair, and that its removal provided a better value option.

New Bridge

A new bridge was constructed between Chistmass and New Year in 2021.

Re-instating the canal channel and towpath will not be completed though until March 2022.

For pictures of the bridge re-build - see here.

(Tap / click images to enlarge)



Ocean Railway Bridge, Stonehouse
View of new Ocean Railway Bridge - work ongoing.
[Date: 09/01/2022]

Preparations for new bridge

Ocean Railway Bridge, Stonehouse
Elevation cross-cection of new Ocean Railway Bridge at Stonehouse.
[Date: 03/12/2020]
Ocean Railway Bridge, Stonehouse
Ocean Bridge work compound where concrete bridge components were cast.
[Date: 23/01/2021. Ken Bailey]
Ocean Railway Bridge, Stonehouse
Ocean Bridge work compound and bridge site.
[Date: 23/01/2021. Ken Bailey]
Ocean Railway Bridge, Stonehouse
New Ocean Bridge concrete components awaiting assembly.
[Date: 31/05/2021. Ken Bailey]

Before Restoration

Ocean Railway Bridge, Stonehouse

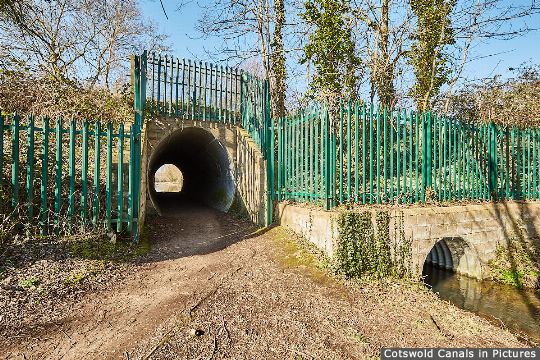

Ocean bridge site before new bridge constructed.
[Date: 25/02/2018]
Ocean Railway Bridge, Stonehouse
Ocean bridge site before new bridge constructed.
[Date: 03/11/2020]
Ocean Railway Bridge, Stonehouse
Ocean bridge site before new bridge constructed.
[Date: 06/04/2020]

Before Original Bridge Removal

Ocean Railway Bridge, Stonehouse
Ocean Railway Bridge before removal in 1968.
[Courtesy: http://www.museuminthepark.org.uk/]
